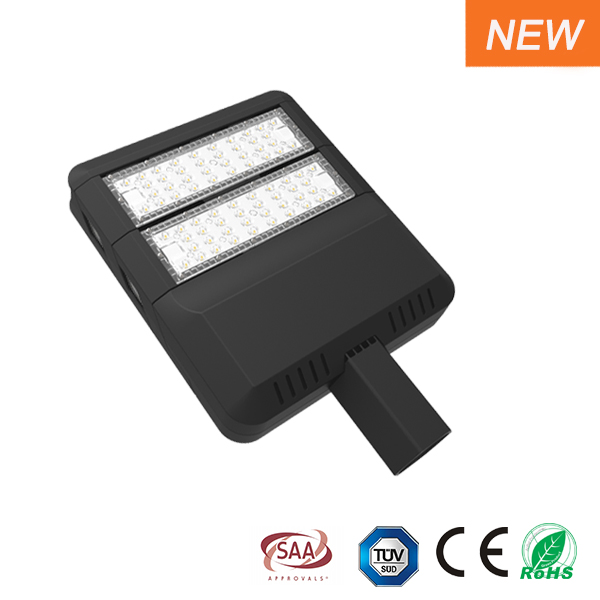

100W Led street light (Transformers-2)

Parameters

Input Voltage AC90-305V Color Rendering Index Ra>70
Frequency Range 50~60Hz THD <20%
Power Factor >0.97 Color Temperature 3000/4000/5000/6000K
Power Efficiency >93% Working Temperature -30℃~+45℃
LED Working Voltage DC48~50V Working Life-span >50000H
Luminous Efficiency 3030(130LM/W) 5050(150LM/W) Power line VDE 3×1.0 mm2



Lighting Features:
1. 5050/3030 LED , 75X150°rectangular spot beam angle ,
5050 light efficiency 150lm/w ,
3030 light efficiency 130lm/w ,
CRI>70
2. 3030 LED , 30°/60° /90°/120° /160°/TYPE-I / TYPE-II /TYPE-III / TYPE -IV Light efficiency 130lm/w
