10W LED Flood Light focus 50°

11  Products Warranty Service regulation

LED flood light applications: Billboard lighting,building exterior landscape lighting,high-pole lighting,road lighting,gardens lighting, etc.

10W led floodlight focus

【1】specialty:

【A】 Adopting integrated Chip as light source with high lighting efficiency(70`80LM/W) ,high CRI(Ra>70),good quality heat dissipation,low light degradation.

【B】Aluminium alloy die cast sheel, good strength,high quality heat dissipation.anti corrosion and baking varnish surface,can be for outdoor using.

【C】Make a dedicated luminous intensity distribution design via the aluminium reflector,there are two options for lighting distribution,one is for focusing,another is for divergencing.

【D】Wide Input Voltage from 90V~264VAC,constant voltage constant current output,can start up at once,no flicker,lightning protection,PFC function available.

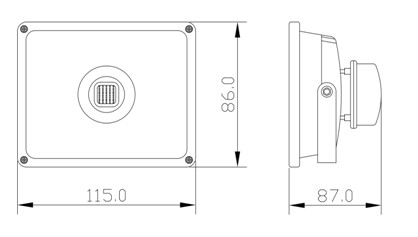

【2】 Shape Structure

Shell Material: Aluminum Alloy

Shell Color: hoar/ Black

Weight:0.6Kg

【3】Parameter

Input Voltage

AC90~264V

Color Rendering Index

Ra>70

Freqency Range

50~60Hz

Beam Angle

50°

Power Factor

>0.97

LED Reduction Rate

1~3% / 1,000Hrs

Power Efficiency

>87%

Color Temperature

2700~7000K

Working Voltage

DC30~36V

Working Temperature

-20℃~+45℃

LED Power

10W

IP Grade

IP65

Total Power

12W

Working Life-span

>35000H

Luminous Efficiency

70~80lm / W

Power line

VDE  3×0.75mm2

Connect wire

Brown→L   Blue→N   Yellow or Green→G

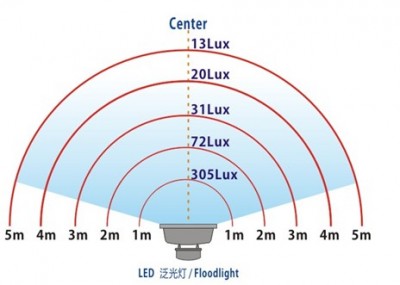

【6】Illumination Distance/illuminance/Irradiated Area





【7】Packing specification

Packing Dimension:(L)517*(W) 272*(H) 244mm    20PC/CTN  15Kg



Attentions:

1. Only professional electrician can install the lamp, please check the lamp very carefully before installation.

2. Please install the lamp follow up the installation procedure, make sure the screw has been wrested very tightly, the wires have been connected properly, .Please operate according to Product Instructions enclosed.
