120W LED Flood Light 600Series

11  Products Warranty Service regulation

LED flood light applications: Billboard lighting,building exterior landscape lighting,high-pole lighting,road lighting,gardens lighting, etc.

120W led floodlights 600Series

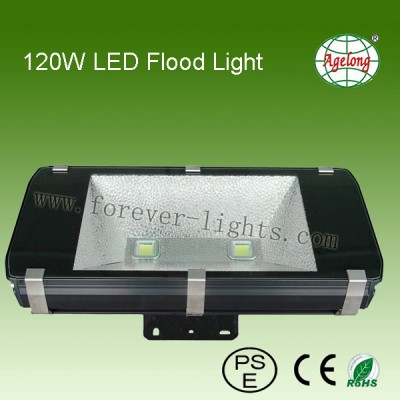

【1】Product Appearance

specialty:

【a】 Adopting integrated Chip as light source with high lighting efficiency(70-80LM/W) ,high CRI(Ra>70),good quality heat dissipation,low light degradation.

【b】Aluminium alloy die cast sheel, good strength,high quality heat dissipation.anti corrosion and baking varnish surface,can be for outdoor using.

【c】Make a dedicated luminous intensity distribution design via the aluminium reflector,there are two options for lighting distribution,one is for focusing,another is for divergencing.

【d】Wide Input Voltage from 100V~277VAC,constant voltage constant current output,can start up at once,no flicker,lightning protection,PFC function available.



【2】 Shape Structure

Shell Material: Aluminum Alloy

Shell Color: hoar/ Black

Weight:13Kg





【3】 Parameter

Input Voltage AC100~277V

AC200~480V For

North America

Color Rendering Index Ra>70
FreqencyRange 50~60Hz Beam Angle 100°
Power Factor >0.97 LED Reduction Rate 1~3% / 1,000Hrs
Power Efficiency >87% Color Temperature 2700~7000K
LED Working Voltage DC30~36V Working Temperature -20℃~+45℃
LED Power 120W IP Grade IP65
Total Power 138W Working Life-span >35000H
Luminous Efficiency 70~80lm / W Power line VDE  3×0.75mm2
Connect wire Brown→L   Blue→N   Yellow or Green→G

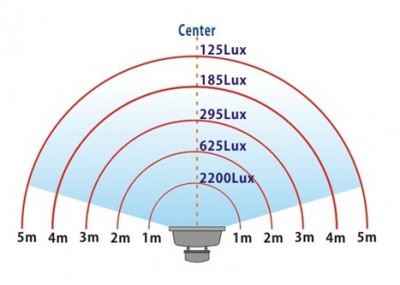

【6】Illumination Distance/illuminance/Irradiated Area



【7】Packing specification

Packing Dimension:(L)662*(W) 360*(H) 264mm    1PC/CTN    15Kg



Attentions:
1,Only professional electrician can install the lamp, please check the lamp very carefully before installation.
2,Please install the lamp follow up the installation procedure, make sure the screw has been wrested very tightly, the wires have been connected properly, .Please operate according to Product Instructions enclosed.
