120W LED High Bay Lights 120°

high bay-3

11  Products Warranty Service regulation

LED high bay lights applications: Factories,workshops,warehouses,exhibition centers,shopping malls or supermarkets,stadiums,toll stations, etc.

120W LED High Bay Lighting 120°

【1】specialty:

【A】Adopting Epistar / Bridgelux integrated Chip as light source with high lighting efficiency, LED initial luminous flux 80-100LM/W,high CRI, low light degradation.

【B】There is build-in dedicated power supply, input voltage: AC100~240V,Power Efficiency:>87%,Power Factor:>0.97,constant voltage, constant current. Over voltage \ over power \ over current protection, lighting protection.

【C】Good aluminum alloy heat sink with good quality heat dissipation, aluminum alloy equipment box, high strength, IP 62,small reflector cap for focusing the light, big one for gathering the light, it achieves an ideal lighting effect.
【D】Can start up within 1`3 seconds, no flicker, anti-jamming, no mercury, energy saving, environment friendly.



【2】 Shape Structure

Shell Material: Aluminum Alloy

Shell Color: Black

Weight:  7.3Kg





【3】Parameter

Input Voltage

AC100~240V

AC200~480V For

North America

Color Rendering Index

Ra>70

Freqency Range

50~60Hz

Beam Angle

120°

Power Factor

>0.97

LED Reduction Rate

1~3% / 1,000Hrs

Power Efficiency

>87%

Color Temperature

2700~7000K

ED Working Voltage

DC30~36V

Working Temperature

-20℃~+45℃

LED Power

120W

IP Grade

IP62

Total Power

127W

Working Life-span

>35000H

Luminous Efficiency

80~100lm / W

Power line

VDE  3×1.0mm2

Connect wire

Brown→L  Blue→N   Yellow or Green→G

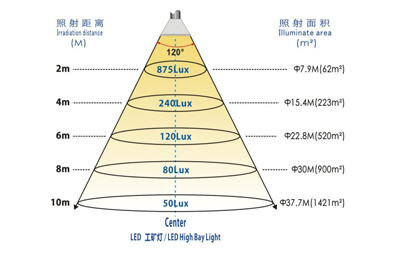

【6】Illumination Distance/illuminance/Irradiated Area



【7】Using and installing instructions

Installation Procedure

install-1

install-2

As Picture No.1 Showed,Install Reflector on the heat sink,wrest fixed screws very tightly.

As Picture No.2 Showed,Wrest hanger into top cap.

As No.3 Showed,Wrest the non skid lock screw to proper position.

As No.4 Showed,Hang the lamp on the installation site.

As Picture No.5 showed,Hang chaining of steel wire on another installation device.

As Picture No.6 Showed,connect Live Wire/Null Wire/Ground Wire to electric cable and switch on.
