150W(100°)Cree led high bay light(UL,TUV,SAA)

cree-high-bay-100

1. All of our LED high bay lights are use MeanWell power supply

2. Adopting Cree LED  as light source, 5 years warranty.

3. Pass UL,TUV(GS,CE),SAA certification

11  Products Warranty Service regulation



LED high bay light applications:

Factories,workshops,warehouses,exhibition centers,shopping malls or supermarkets,stadiums,toll stations, etc.

1. Product Specialty

(1) Patented structure design and impact strength of the power box has reached the explosion-proof requirements。

(2) Using Cree LED, with high LED initial luminous flux 100LM/W, and CRI Ra>80.

(3) Fins heat dissipation design with wide heat dissipation areas, the lamp internal using the latest thermal conductive materials, enables the LED Tj within 75℃, and power up to 200W, lifespan more than 35,000 hours.

(4) The lamp is good-looking and dustproof, after rigorous testing, has achieved multinational certificates such as TUV-SUD,UL etc. using high efficiency power supply (MeanWell brand) inside with input voltage AC100~240V.

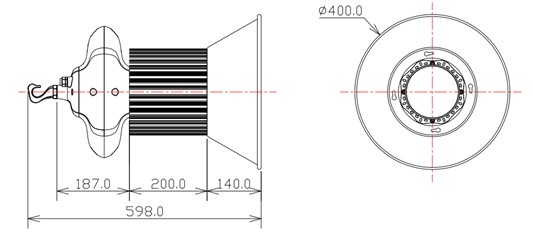

2. Shape Structure

Shell Material:Aluminum Alloy
Shell Color:Silver gray
Weight:10Kg
Unit:mm ±2mm
ufo-led-light-100-150

3. Parameter

Input Voltage

AC100~240V

Color Rendering Index

Ra>80

Frequency Range

50~60Hz

Beam Angle

100°

Power Factor

>0.95

LED Reduction Rate

1~3% / 1,000Hrs

Power Efficiency

>90%

Color Temperature

2700K / 4000K / 5000K

LED Working Voltage

DC29~33V

Working Temperature

25℃

Total Power

157W

IP Grade

IP65

Luminous Efficiency

>100lm / W

Working Life-span

>35000H

Power line

(UL 18AWG),VDE



If you need more details, please contact: sales@forever-lights.com
