20W LED Flood Light

11  Products Warranty Service regulation

LED flood light applications: Billboard lighting,building exterior landscape lighting,high-pole lighting,road lighting,gardens lighting, etc.

20W LED flood lights

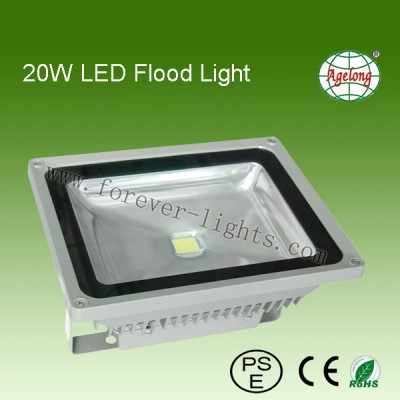

【1】Product Appearance


【a】 Adopting integrated Chip as light source with high lighting efficiency(70-80LM/W) ,high CRI(Ra>70),good quality heat dissipation,low light degradation.

【b】Aluminium alloy die cast sheel, good strength,high quality heat dissipation.anti corrosion and baking varnish surface,can be for outdoor using.

【c】Make a dedicated luminous intensity distribution design via the aluminium reflector,there are two options for lighting distribution,one is for focusing,another is for divergencing.

【d】Wide Input Voltage from 90V~264VAC,constant voltage constant current output,can start up at once,no flicker,lightning protection,PFC function available.


【2】 Shape Structure

Shell Material: Aluminum Alloy

Shell Color: hoar/ Black



【3】 Parameter

Input Voltage


Color Rendering Index




Beam Angle


Power Factor


LED Reduction Rate

1~3% / 1,000Hrs

Power Efficiency


Color Temperature


LED Working Voltage


Working Temperature


LED Power


IP Grade


Total Power


Working Life-span


Luminous Efficiency

70~80lm / W

Power line

VDE  3×0.75mm2

Connect wire

Brown →L / Blue→ N/Yellow or Green →G

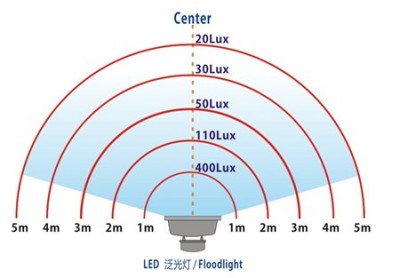

【6】Illumination Distance/illuminance/Irradiated Area


【7】Packing specification

Packing Dimension:(L)554*(W) 340*(H) 264mm   4PC/CTN   12Kg
