30W LED High Bay Light 40°

11  Products Warranty Service regulation

LED high bay lights applications: Factories,workshops,warehouses,exhibition centers,shopping malls or supermarkets,stadiums,toll stations, etc.

【1】specialty:

【A】Adopting Epistar / Bridgelux integrated Chip as light source with high lighting efficiency, high CRI, low light degradation.

【B】There is build-in dedicated power supply, input voltage: AC90~264V,Power Efficiency:>87%,Power Factor:>0.97,constant voltage, constant current. Over voltage \ over power \ over current protection, lighting protection.

【C】Good aluminum alloy heat sink with good quality heat dissipation, aluminum alloy equipment box, high strength, IP 65,small reflector cap for focusing the light, big one for gathering the light, it achieves an ideal lighting effect.
【D】Can start up within 1`3 seconds, no flicker, anti-jamming, no mercury, energy saving, environment friendly.



【2】 Shape Structure

Shell Material: Aluminum Alloy

Shell Color: Black

Weight:  3.2Kg

【3】Parameter

Input Voltage

AC90~264V

Color Rendering Index

Ra>70

Freqency Range

50~60Hz

Beam Angle

40°

Power Factor

>0.97

LED Reduction Rate

1~3% / 1,000Hrs

Power Efficiency

>87%

Color Temperature

2700~7000K

ED Working Voltage

DC30~33V

Working Temperature

-20℃~+45℃

LED Power

30W

IP Grade

IP62

Total Power

35W

Working Life-span

>35000H

Luminous Efficiency

70~80lm / W

Power line

VDE  3×0.75mm2

Connect wire

Brown→L  Blue→N   Yellow or Green→G

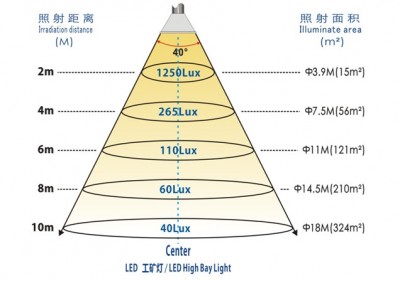

【6】Illumination Distance/illuminance/Irradiated Area





【7】Packing specification

Lamp Packing:(L)252×(W) 252×(H) 244mm    1PC/CTN     4.5Kg





Reflector Packing:(L)487×(W) 487×(H) 480mm  10PCS/CTN   7.5Kg
