40W E40 LED Light

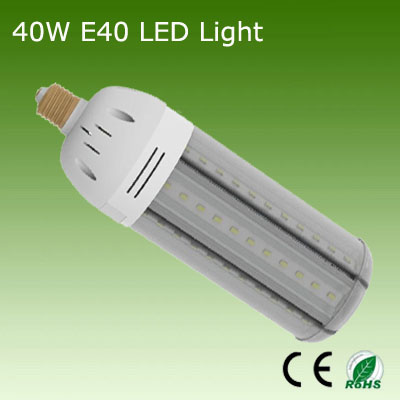

【1】Product Appearance

40W

  Speciality:

【1】Full series of new products, which could displace the compact Traditional CFL light.
【2】Unique patented structure with active cooling fan, with wide-angled(360°).
【3】Various lamp holder are available (E39/E40, E26/E27).
【4】Using Fan protection circuit, when fans could not work, the power of whole lamp will be reduced 50% to ensure the safety of the lamps.
【5】Meet the CE and ETL standard.

【2】Shape Structure

Shell Material:Aluminum PC cover Shell Color:White

Net Weight:0.65KG Size(mm):E27:Φ90*268   E40: Φ90*290
Unit:mm ±1mm

40W-1

【3】Parameter

                                modelproject Transparent stripe cover
Optical Parameters light source(LED) 5730 LED,EPISTAR chip
luminous fluxΦ (lm) 4000
CCT(K) 2800-3300K  4000-4500K  6000-6500K
CRI ≥70
Light spot Round
 (Lifespan) ≥35000H
ElectricParameters Input Voltage(V) AC 85~ 265
Frequency (Hz) 60/50 Hz
Input Currency(mA) 110V:364   220V:182
 Total Power (W) 40±2W
Power Factor (PF) >0.92
Start time (S) 0.2
Comprehensive Parameters Protection Grade (IP) IP20
Work temp -25℃ ~ 55℃、10% ~ 90% R.H.
Store temp -40℃ ~ 85℃、0% ~ 95% R.H.
Certificate CE ETL
environmental directive ROHS

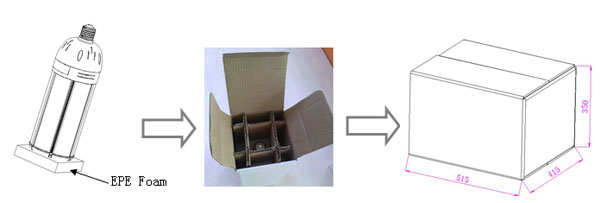

【4】Packing specification
1、Packing: 5 * 4 = 20 PCS

L W H G.W(Kg)
Inner Box 100 100 330 0.77
Outer Box 515 415 350 16



40W-2
【5】Installation
Base(E26/E27/E39/E40) Suggested upright installation:

20W-2

【6】Applications
1.Indoor: Corridor, factories, supermarkets, warehouse, underground parking, etc
2.Outdoor: Small street lamps and other lamps with cover

20W-4

Attentions:
When this product be used in small full closed space, it will reduce the brightness maintain rate and shorten the lifespan.
