60W LED Flood Lights 370Series

11  Products Warranty Service regulation

LED flood light applications: Billboard lighting,building exterior landscape lighting,high-pole lighting,road lighting,gardens lighting, etc.

60W LED Flood Lights 370Series

【1】Product Appearance

specialty:

【a】 Adopting integrated Chip as light source with high lighting efficiency(70-80LM/W) ,high CRI(Ra>70),good quality heat dissipation,low light degradation.

【b】Aluminium alloy die cast sheel, good strength,high quality heat dissipation.anti corrosion and baking varnish surface,can be for outdoor using.

【c】Make a dedicated luminous intensity distribution design via the aluminium reflector,there are two options for lighting distribution,one is for focusing,another is for divergencing.

【d】Wide Input Voltage from 100V~277VAC,constant voltage constant current output,can start up at once,no flicker,lightning protection,PFC function available.



【2】 Shape Structure

Shell Material: Aluminum Alloy

Shell Color: hoar/ Black

Weight:8.5Kg



【3】 Parameter

Input Voltage

AC100~277V

 Color Rendering Index

Ra>70

FreqencyRange

50~60Hz

 Beam Angle

100°

Power Factor

>0.97

 LED Reduction Rate

1~3% / 1,000Hrs

Power Efficiency

>87%

 Color Temperature

2700~7000K

LED Working Voltage

DC30~36V

Working Temperature

-20℃~+45℃

LED Power

60W

 IP Grade

IP65

Total Power

69W

 Working Life-span

>35000H

Luminous Efficiency

70~80lm / W

 Power line

VDE  3×0.75mm2

Connect wire

Brown →L / Blue→ N/Yellow or Green →G

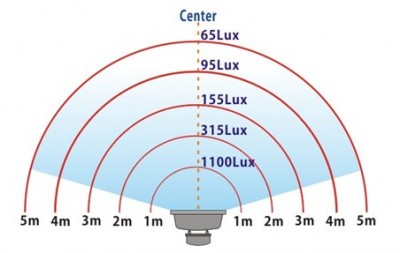

【6】Illumination Distance/illuminance/Irradiated Area



【7】Packing specification

1、 Packing Dimension:(L)460*(W) 340*(H)425mm    2PC/CTN    19Kg

Attentions:

1.    Only professional electrician can install the lamp, please check the lamp very carefully before installation.

2.    Please install the lamp follow up the installation procedure, make sure the screw has been wrested.
