LED flood light applications: Billboard lighting,building exterior landscape lighting,high-pole lighting,road lighting,gardens lighting, etc.

60W LED Flood Light  focus

【1】specialty：

【A】 Adopting integrated Chip as light source with high lighting efficiency(70`80LM/W) ,high CRI(Ra>80),good quality heat dissipation,low light degradation.

【B】Aluminium alloy die cast sheel, good strength,high quality heat dissipation.anti corrosion and baking varnish surface,can be for outdoor using.

【C】Make a dedicated luminous intensity distribution design via the aluminium reflector,there are two options for lighting distribution,one is for focusing,another is for divergencing.

【D】Wide Input Voltage from 90V~264VAC,constant voltage constant current output,can start up at once,no flicker,lightning protection,PFC function available.



【2】 Shape Structure

Shell Material： Aluminum Alloy

Shell Color： hoar/ Black

Weight：6.5Kg





【3】Parameter

Input Voltage	AC90～264V	Color Rendering Index	Ra>70
Freqency Range	50～60Hz	Beam Angle	50°
Power Factor	>0.97	LED Reduction Rate	1～3% / 1,000Hrs
Power Efficiency	>87%	Color Temperature	2700～7000K
Working Voltage	DC30～36V	Working Temperature	-20℃～+45℃
LED Power	60W	IP Grade	IP65
Total Power	69W	Working Life-span	>35000H
Luminous Efficiency	70～80lm / W	Power line	VDE  3×0.75mm2
Connect wire	Brown→L   Blue→N   Yellow or Green→G

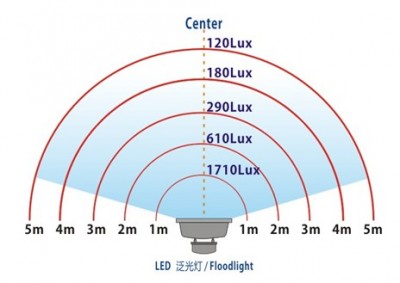

【6】Illumination Distance/illuminance/Irradiated Area





【7】Packing specification

Packing Dimension：（L）447*(W) 300*(H)338mm    2PC/CTN  15Kg





Attentions：

1. Only professional electrician can install the lamp, please check the lamp very carefully before installation.

2. Please install the lamp follow up the installation procedure, make sure the screw has been wrested very tightly, the wires have been connected properly, .Please operate according to Product Instructions enclosed.
