60W LED Flood Light

11  Products Warranty Service regulation

LED flood light applications: Billboard lighting,building exterior landscape lighting,high-pole lighting,road lighting,gardens lighting, etc.

60W Led flood lamp

【1】Product Appearance

specialty:

【a】 Adopting integrated Chip as light source with high lighting efficiency(70-80LM/W) ,high CRI(Ra>70),good quality heat dissipation,low light degradation.

【b】Aluminium alloy die cast sheel, good strength,high quality heat dissipation.anti corrosion and baking varnish surface,can be for outdoor using.

【c】Make a dedicated luminous intensity distribution design via the aluminium reflector,there are two options for lighting distribution,one is for focusing,another is for divergencing.

【d】Wide Input Voltage from 90V~264VAC,constant voltage constant current output,can start up at once,no flicker,lightning protection,PFC function available.



【2】 Shape Structure

Shell Material: Aluminum Alloy

Shell Color: hoar/ Black

Weight:6.5Kg



【3】 Parameter

Input Voltage

AC90~265V

Color Rendering Index

Ra>70

FrequencyRange

50~60Hz

Beam Angle

80°

Power Factor

>0.97

LED Reduction Rate

1~3% / 1,000Hrs

Power Efficiency

>87%

Color Temperature

2700~7000K

LED Working Voltage

DC30~36V

Working Temperature

-20℃~+45℃

LED Power

60W

IP Grade

IP65

Total Power

69W

Working Life-span

>35000H

Luminous Efficiency

70~80lm / W

Power line

VDE  3×0.75mm2

Connect wire

Brown →L / Blue→ N/Yellow or Green →G

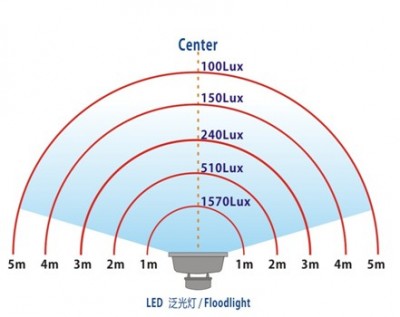

【6】Illumination Distance/illuminance/Irradiated Area





【7】Packing specification
Packing Dimension:(L)447*(W) 300*(H) 338mm    2PC/CTN   15Kg
