60W LED Tri-proof light

Led tri-proof light 20 40 60

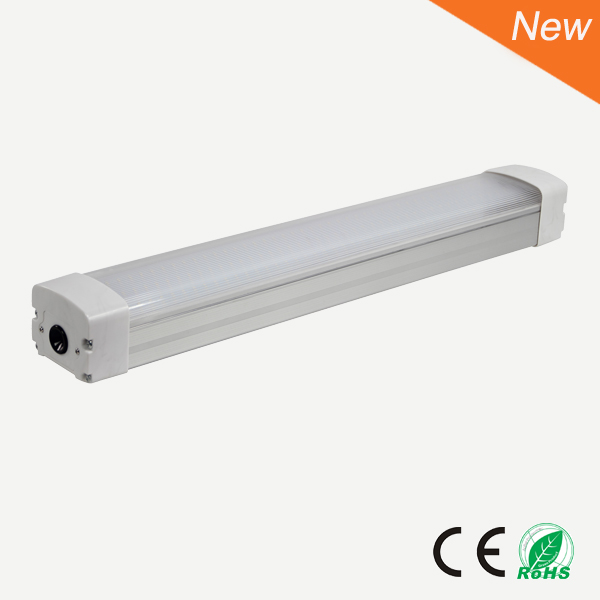

Product Appearance

1. Long life, low maintenance cost;Extended lumen maintenance;Extremely wide operating temperature range;Glass & mercury free ;No UV or IR;Instant light,patent design; Rugged durability and reliability
2. Intelligent 2/4/5 feet length optional;diffuse optics eliminate point sources ;Installation way optional:standard aircraft cable or fixed mount
3. Linkable version installation done indivisually or end-to-end.linking cable length from 0cm to what you need
4. Emergency 3 hours back up battery,play an important role in helping people leave the site when power is out

Shape Structure

Shell Material:Aluminum
Shell Color:White
Unit:mm ±1mm

Led tri-proof light 20 cct

Parameter

Input Voltage AC90~277V Color Rendering Index Ra>80
requency Range 50~60Hz Beam Angle 120°
Power Factor >0.9 Color Temperature 2700~6500K
LED Qty SMD2835  324PCS Working Temperature -30℃~+40℃
Total Power 60W IP Grade IP65,IK10
Luminous Flux > 7200 lm Working Life-span >35000H



Packing specification

Inner box dimension(mm) Ctn dimension(mm) G.W/Carton (KG) Quantity/carton (pcs)
1600*92*82 mm 1620*190*215 mm 13.5 KG 4  PCS



APPLICATION

Workshops ,Garages ,Utility areas ,Factories ,Areas requiring protection from light impact ,Dusty and dirty environments.

Led tri-proof light 20 anli
