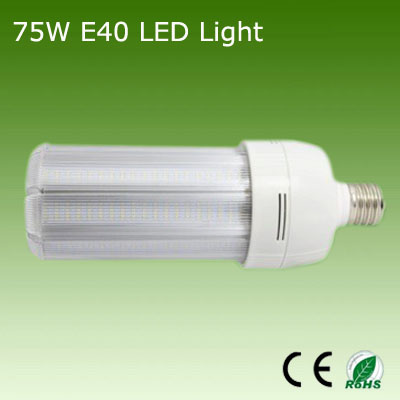

75W E40 LED Light

【1】Product Appearance

75W

 Speciality:

【1】Full series of new products, which could displace the compact Traditional CFL light.
【2】Unique patented structure with active cooling fan, with wide-angled(360°).
【3】Various lamp holder are available (E39/E40, E26/E27).
【4】Using Fan protection circuit, when fans could not work, the power of whole lamp will be reduced 50% to ensure the safety of the lamps.
【5】Meet the CE and ETL standard.

【2】Shape Structure

Shell Material:Aluminum PC cover Shell Color:White

Net Weight:0.95KG    Sizemm:E39¢111.5*313mm

Unit:mm ±1mm

75W-1

【3】Parameter

                                modelproject Transparent stripe cover
Optical Parameters light source(LED) 5730 LED,EPISTAR chip
luminous fluxΦ (lm) 7500
CCT(K) 2800-3300K  4000-4500K  6000-6500K
CRI ≥72
Light spot Round
 (Lifespan) ≥35000H
ElectricParameters Input Voltage(V) AC 85~ 265
Frequency (Hz) 60/50 Hz
Input Currency(mA) 110V:682    220V:341
 Total Power (W) 75±2W
Power Factor (PF) 0.95
Start time (S) <0.5 S
high-voltage test 3750V
Comprehensive Parameters Protection Grade (IP) IP30
Work temp -25℃ ~ 55℃、10% ~ 90% R.H.
Store temp -40℃ ~ 85℃、0% ~ 95% R.H.
Certificate CE ETL
environmental directive ROHS



【4】Packing specification
1、Packing: 2 * 5 = 10PCS

L W H G.W(Kg)
Inner Box 120mm 120mm 340mm 1.0
Outer Box 615mm 255mm 360mm 11



60W-2



【5】Installation
Screw directly into E39/40 lamp holder, suggested upright installation:

60W-3



【6】Applications
1.Indoor: Corridor, factories, supermarkets, warehouse, underground parking, etc
2.Outdoor: Small street lamps and other lamps with cover

20W-4

Attentions:
When this product be used in small full closed space, it will reduce the brightness maintain rate and shorten the lifespan.
