DOB LED Flood Light Module 100W

module-led-flood-light

Parameter

Input Voltage AC180-277V Color Rendering Index Ra>80
Frequency Range 50~60Hz THD <10%
Power Factor >0.97  Color Temperature 3000/4000/5000/6500K
Power Efficiency >93% Working Temperature -20℃~+45℃
LED Working Voltage DC36~42V Working Life-span >50000H
Luminous Efficiency 90-105 lm/w Power line VDE  3×1mm2



Specialty

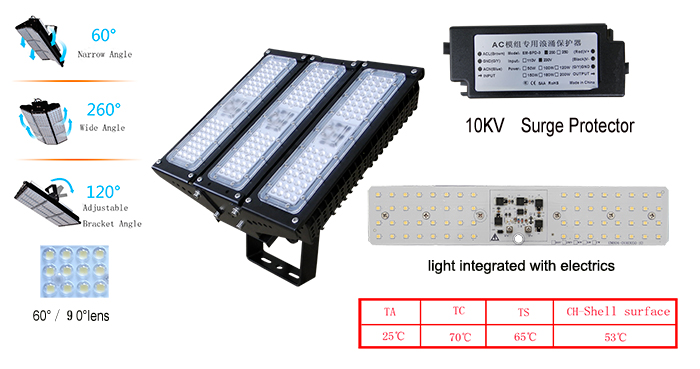

module-led-flood-light-cctd

Heat Dissipation speciality:
1.Riveted 6063 AL fin structure.
2.Thermal-assisted 3D structure heatsink, two heat Dissipation channel take away the heat from bottom quickly.

Electrical features :
1. Smart linear constant current IC control ,light integrated with electrics, more stable function.
2. Inside with surge protective circuits that can against 10KV surge.
3. With 0VP over voltage protection , 0TP over temperature protection , over flow protection.

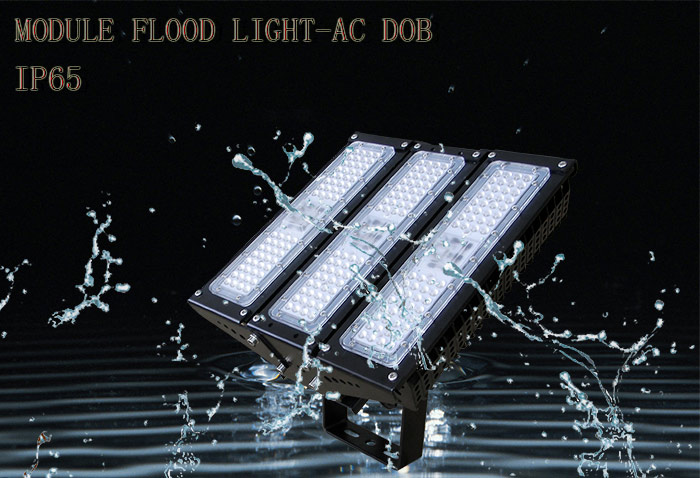

module-led-flood-light-ip65
