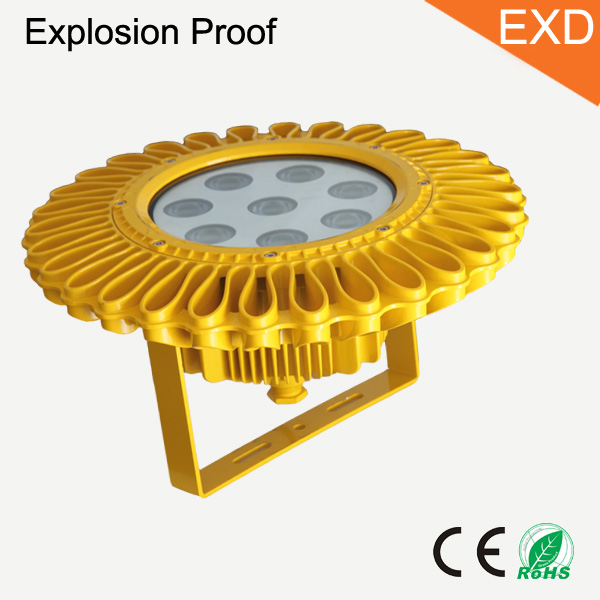

EXD led light 100W

gebao80100120

Shape Structure

Shell Material:Aluminum Alloy+PBT+ toughened glass
Shell Color: yellow
Net Weight:9.7Kg
Dimension:H220*Φ400MM
Unit:mm ±1mm

gebao89001



Parameter

Input Voltage AC100~240V LED quantity 8 PCS
Input Current <2A Color Temperature 5000k-6000K
 Frequency Range 50~60Hz Color Rendering Index Ra>70
Power Factor >0.95 Light Distribution cone
Total Power 100W Light output way binary symmetry
Temperature/Humidity -20℃~+55℃/≤95%RH luminous flux ≥7500LM
Protection Grade Luminous Efficiency 75lm / W
Electrical position postposition IP Grade IP66
Installation
packing size  250*250*280 mm



Application

For the environment:

1, explosive gas environment in 2 areas

2, A II, B grade II in explosive gas environment

3, temperature classes for T1-T6/T4/T3 environment

4, oil production and refining, metallurgy, chemical, pharmaceutical, steel, shipbuilding and other applicable environment

Application: it is mainly used in oil, chemical, thermal power, steel, metallurgy, medicine, military, ships, oil station, gas tank, gas recovery device equipment and pipeline.
