Led canopy light 120W

Canopy-Light-120W-150W

Speciality:

1.Adopt Vapor chamber cooling technology, good heat dissipation, high luminous efficiency.

2.Adopt Cree LED, module design; Easy to maintain.

3.All use Meanwell power supply.

4.Patent hollow out design, better heat dissipation.

5.Applications: gas station, stadium, golf course, shops, metro station, supermarket, etc.

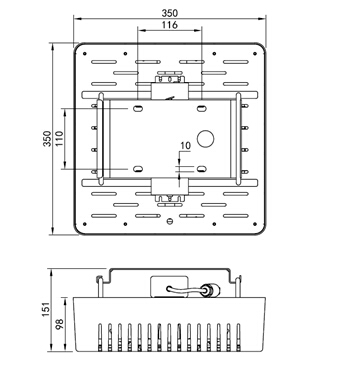

Shape Structure

Product size:350*350*150mm
Shell Color:white
Unit:±2mm

led-canopy-light-60w-22



Parameters

Input Voltage AC90-305V Color Rendering Index Ra>75
Frequency Range 50~60Hz Beam Angle  90°*135°
Power Factor >0.95 Color Temperature 2800-6500K
Power Efficiency >90% Working Temperature -30℃~+50℃
Total Power 120W IP Grade IP65
Luminous Efficiency ≧90 lm / W Working Life-span >50000H
LED quantity 60PCS suggestion install height 5-6m
Packing size 410*410*210mm Gross Weight 8.8Kg



Using and installation instructions

led-canopy-light-60w-33-600x449

The ceiling must be made of concrete or similar material and strong enough.

A licensed electrician must undertake this installation. Please check the lamp carefully before installation.

Please follow up the installation procedures, make sure the screws been wrested very tightly, the wires been connected properly, as attached installation instruction.

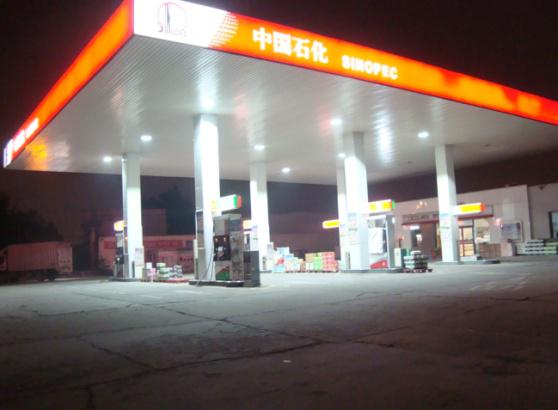

Cases

youzhandenganli
