LED Down Light 80W

LED-Down-Light-120-80

Speciality:

【1】Adopt PHILIPS 3030 LED , Luminous efficiency 110-130 lm/w, CRI > 80;

【2】Apply Heat-pipe Riveting cooling technology, fine copper pipe tightly contacts with heat source and quickly transfers heat to the cooling module, it greatly improves heat conduction effects through the perfect function of the copper pipe .

【3】Professional optical design with 30 ° and 50 ° scaly reflector to choose . A professional optical shielding Angle design of 40 ° to avoid dazzle light and reduce visual fatigue.

【4】Cutting-edge design, efficient protection, both pole and hook installation can apply to different places, metal net cover prevents dropping of large glass, multiple safety protection.

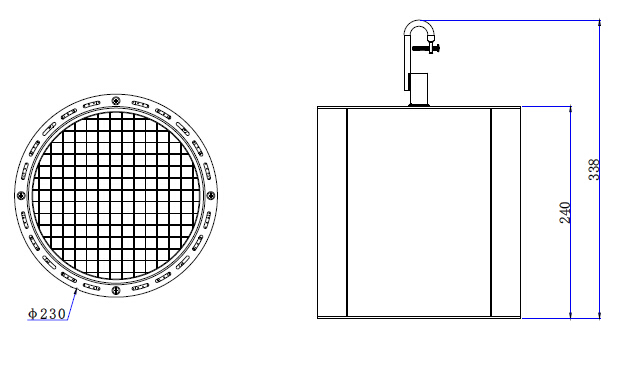

Shape Structure

Shell Material:Aluminum Alloy
Shell Color:silver
Net Weight: 3Kg

LED-Down-Light-80cct



Parameter

Input Voltage AC100~277V Color Rendering Index Ra>80
Freqency Range 50~60Hz Beam Angle 30°50°
Power Factor >0.96 LED Reduction Rate 1~3% / 1,000Hrs
Power Efficiency >95% Color Temperature 3000/4000/5700K
LED Working Voltage DC36~42V Working Temperature -20℃~+45℃
LED Power 72W IP Grade IP62
Total Power 80W Working Life-span >50000H
Luminous Efficiency ≧90lm / W Power line VDE  3×1.0mm2
Connect wire Brown→L    Blue→N   Yellow or Green→G



Packing specification

Packing Dimension:(L)295 ×(W) 295 ×(H) 310 mm    1PC/CTN   4.1Kg



Attentions:

1.Only professional electrician can install the lamp, please check the lamp very carefully before installation.

2.Please install the lamp follow up the installation procedure, make sure the screw has been wrested very tightly, the wires have been connected properly, .Please operate according to Product Instructions enclosed.
