LED High Mast light 800W

LED-High-Mast-light-800WA

Speciality:

1.Adopting CREE 5050 as light source, uniform light,LED initial luminous flux 100LM/W , CRI
(Ra>80), good heat dissipation, low light degradation.

2.Heatpipe-Riveting and massive fins cooling technology
The 4*Ф6MM heatpipe directly connect light source,quickly transfer the LED’s heat to the
massive cooling radiation fin; Massive fins tightly connect to the die-cast heat sink,
constitute a integrated cooling housing. The finished LED light’s lifespan is 50,000 hours
reasonable.

3.Adopting MEANWELL Driver,wide Input Voltage from 90V~305VAC,constant voltage constant
currentoutput, can start up at once, no flicker, lightning protection, PFC function available.

4.Adopting pure aluminum reflector,anti-oxidation process,unfading in color, good reflection.
Using toughened glass panel,strongly protects the light source,transmittance rate is up to 93%.

5.Whole light processed by oxide sandblasting paint, excellent corrosion resistance ability.
Using stainless steel screws and spare parts, can be used in all kinds of harsh conditions for
long term.

6.Equipped with respirator,balance the different pressure between the atmosphere and the shell.
It is water proof also defog and avoiding the drop condensation. It significantly reduces
product failure rate caused by corrosion and so extends the product lifespan.

7.Adopting water-proof connector and silicon rubber sealing, the protection rate is IP65

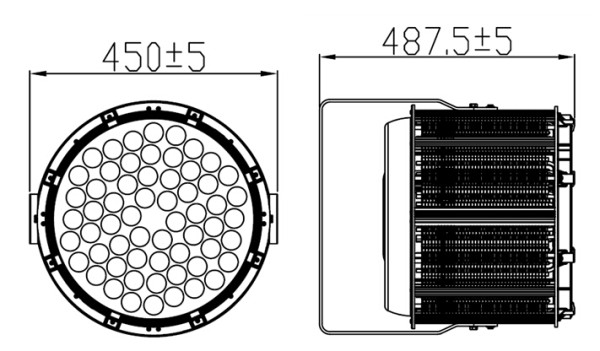

Shape Structure

Shell Material: Aluminum Alloy
Shell Color: Black
Net Weight: 19Kg

LED-High-Mast-light-800WA-CCT



Parameter

Input Voltage AC90~305V Color Rendering Index Ra80
Frequency Range 5060Hz Beam Angle 15°
Power Factor >0.96 LED Reduction Rate 13% / 1,000Hrs
Power Efficiency >95% Color Temperature 4000-6500K
LED Working Voltage DC30~36V Working Temperature -20℃+45℃
LED Power 760W IP Grade IP65
Total Power 800W Working Life-span >50000H
Luminous Efficiency ≧100lm / W Power line VDE  3×1.0mm2
Connect wire Brown→L  Blue→N   Yellow or Green→G



Photometric Data

LED-High-Mast-light-800WA-PD



Illumination Distance/illuminance/Irradiated Area

LED-High-Mast-light-800WA-II

Attentions

1.Only professional electrician can install the lamp, please check the lamp very carefully before installation.

2.Please install the lamp follow up the installation procedure, make sure the screw has been wrested very tightly,
the wires have been connected properly, .Please operate according to Product Instructions enclosed.
