LED Panel Light 60W (595*1195)

led-pannel-light-600-120

Speciality:
(1)Adopt side emitting light source with high brightness 4014 LED ,the high transmittance LGP leads to form a very uniform light effect, which is even, bright, soft, comfortable and not dazzling, UGR < 19;
(2)Side emitting panel light , with good heat dissipation structure , can transfer the heat rapidly and keep the shell temperature below 20 degrees . It effectively prolongs the service life of the whole lamp, average lifespan reaches above 50000 hours of the light source ;
(3)It’s ultra light and thin, easy to install, can replace grille lamp or ceiling lamp of the same specification in embeded installation and integrated with ceiling; It’s with wide application as also can be used for surface mounting and hanging mounting on ceiling or wall .
(4)Panel light , with good sealing , is dust-proof and insect-proof , better reflect the true color of objects with its high color rendering index ;



Shape Structure

Shell Material:Aluminum Alloy
Shell Color:white
Net Weight:6Kg
Unit:mm ±1mm

pannel light 60w cct1

Parameter

Input Voltage AC220~240V Color Rendering Index Ra>80
Frequency Range 50~60Hz Beam Angle 113°
Power Factor >0.95 LED Reduction Rate 1~3% / 1,000Hrs
Power Efficiency >87% Color Temperature 3000/4000K
LED Working Voltage DC42V-48V Working Temperature -20℃~+45℃
LED Power 54W IP Grade IP62
Total Power 60W Lifespan >50000H
Luminous Efficiency ≥90lm / W Unified Glare Rating UGR<19
Connect wire Brown→L   Blue→N   Yellow or Green→G

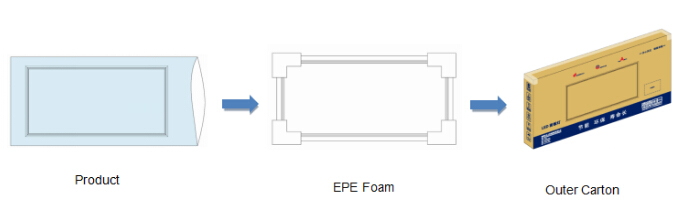

Packing specification

pannel light 60w bz

【1】Outer Carton Dimension: 1296*76*656mm; [51*2.99*25.8 in];
【2】2pcs/outer carton;
【3】Net Weight(N.W.)/ outer carton:13.2(1±10%)kg; [29(1±10%)lb];
【4】Gross Weight(G.W.)/ outer carton:15(1±10%)kg; [33.07(1±10%)lb];



Attentions:
1.Only professional electrician can install the lamp, please check the lamp very carefully before installation.
2.Please install the lamp follow up the installation procedure, make sure the screw has been wrested very tightly, the wires have been connected properly, .Please operate according to Product Instructions enclosed.
