LED Street Light 200W Type B



Specialty:

1.Shell adopt ADC12 die-casting aluminum integral molding.

2.Surface is sprayed with powder that have anti – UV property, it is more suitable for outdoor lighting.

3.The back adopts the integrated cover to prevent dust from entering the interior of the lamp.

4.Adjust the mounting Angle at 90 degrees and 180 degrees.

5.The sealing ring is made of silicone rubber material, and the protection level of the lamp can reach IP65, impact grade IK08.

6.Adopt CREE,LUMILEDS High luminous efficiency 3030 LED as light source.

7.It can add auxiliary functions, NEMA interface (daylight sensor/LoRa intelligent lighting), etc.

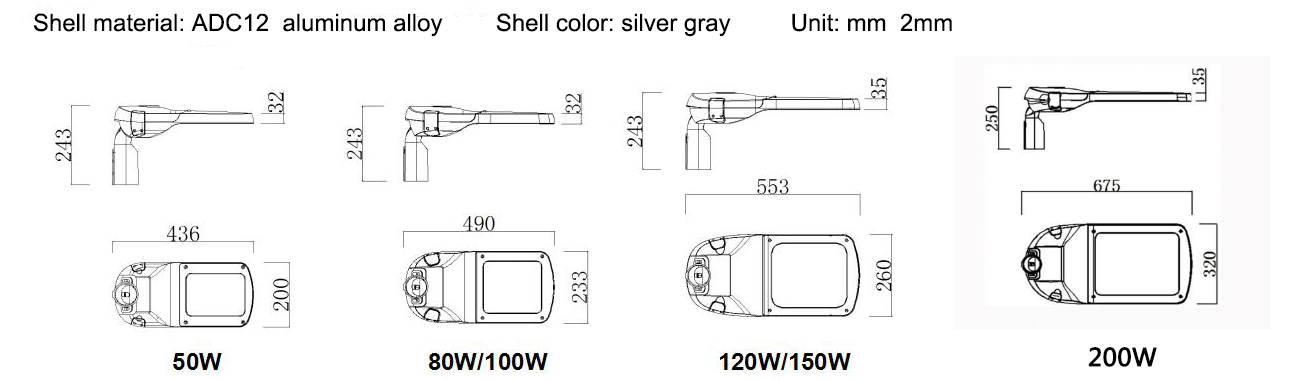

Shape and Structure Sharacteristics





Parameters

 INPUT Voltage AC90~305V Color Rendering Index Ra>70
 Frequency Range 50~60Hz Beam Angle 155°*80°,

Polarized light 30°

Power Factor >0.97 LED Reduction Rate 1~3% / 1,000Hrs
Power Efficiency >93% LED Color Temperature 3000~6500K
LED Voltage DC48V Working Temperature -20℃~+40℃
Total Power IP Grade IP65
LED Luminous Efficiency 120-130lm / W Working Life-span >50000H
 Power line VDE  3×1.0mm2





Packing specification



Item No. Size(mm) G-weight (kg) Item No. Size(mm) G-weight (kg)
XL-SL2019B-50W 560*230*135 4.2 XL-SL2019-80W 610*260*135 5.1
XL-SL2019B-100W 610*260*135 5.2 XL-SL2019-120W 660*290*135 6.6
XL-SL2019B-150W 660*290*135 6.8
XL-SL2019B-200W 780*350*135 8.5





Application field



LED street lamp is applicable to lighting of main road, auxiliary road, park walkway and other road lighting places.
