LED street light (LDM) 30W

specialty:

1. Integrated design of driver box and arm, minimize the wind resistance, it can withstand a level 17 hurricane. The whole aluminum lamp is able
to heat dissipation ,led Tj <75℃ Dust poof and water proof design ,reduce maintenance cost, suitable for out door environment.

2. Prospective design, excellent performance, two specifications (Φ40mm,Φ60mm) of the light pole’s black cover, the lamps can be used more
widely; the street lamp adapter, with clear scale ,120° angle adjustable.

3. Use the module optical lens processing into bats wing spot, more efficient use of light, to achieve the ideal lighting effect.

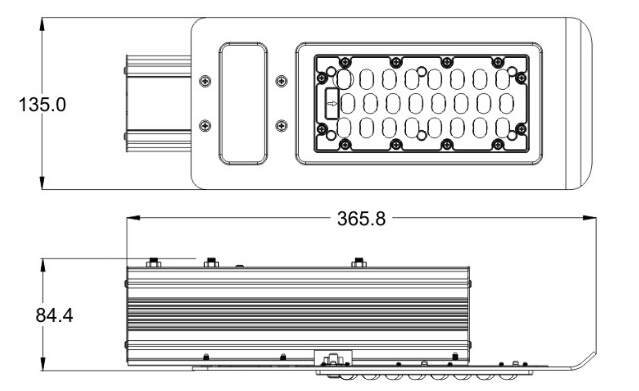

Shape Structure

Shell Material:Aluminum Alloy
Shell Color:silver
Net Weight:1Kg
Unit:mm±1mm

led street light LDM 30W CCT



Parameter

Input Voltage AC100~277V Color Rendering Index Ra>70
Frequency Range 50~60Hz Beam Angle 70°*135°
Power Factor >0.9 LED Reduction Rate 1~3% / 1,000Hrs
Power Efficiency >90% LED Color Temperature 3000/4500/6000K
LED Working Voltage DC36V Working Temperature -20℃~+45℃
LED Power 27W IP Grade IP65
Total Power 30W Working Life-span >50000H
Luminous Efficiency ≥100lm / W Power line VDE  3×1.0mm²
Connect wire Brown→L  Blue→N   Yellow or Green→G



Packing specification

1、Packing Dimension:(L)415 ×(W)190 ×(H)145 mm   1PC/CTN  1.35 Kg

Using and installing instructions

led street light LDM 30W AZ



Application

Widely used in arterial roads, high ways, elevated road, city street, bridges, side walks road lighting, and the square ,schools, residential areas, industrial areas, parks and other outdoor lighting places.

led street light LDM 30W AL
