LED Tri-proof Lamp 30W 0.9M



Specialty:

【1】The shell is made of PC materials optical pole by two-colour extrusion process, which has excellent weather resistance.
【2】The plug is using innovative clamp-type installation method, without screws, convenient for the construction site operation.
【3】The lamp plug is equipped with respirator,which make the lamp breathable,dry and fog-free, the heat dissipation temperature is 3-5 degree lower than that traditional plug.
【4】Lamps are waterproof, dustproof, and anti-corrosive. Light fixture is with IP65,IK10/09.
【5】The transparent parts of lampshade optimized based on the principle of illumination optics. The light is uniform, soft and non-glare.
【6】Installation: hanging, Ceiling mounting and others various ways
【7】Emergency function: Emergency power:5W keep on 3 hours.



Parameters

 Input Voltage AC100~277V  Color Rendering Index Ra>80
 Frequency Range 50~60Hz  Beam Angle 110°
 Power Factor >0.95  LED Reduction Rate 1~3% / 1,000Hrs
 Power Efficiency >90%  Color Temperature 2800~6500K
LED Working Voltage DC36-42V Working Temperature -20℃~+45℃
Total Power  IP Grade IP65
 Luminous Efficiency 120lm / W  Working Life-span >50000H
 Power line VDE  3×1.0mm2



Packing specification

model size weight model (Emergency) size weight
XL-TPL-20W 710*280*250mm 1.1kg XL-TPLB-20W 710*280*250mm 1.5kg
XL-TPL-30W 1010*280*250mm 1.5kg XL-TPLB-30W 1010*280*250mm 2.1kg
XL-TPL-40/50W 1310*280*250mm 1.95kg XL-TPLB-40/50W 1310*280*250mm 3.5kg
XL-TPL-50/60W 1610*280*250mm 3.35kg XL-TPLB-50/60W 1610*280*250mm 4.7kg



Item XL-TPL-20W XL-TPL-30W XL-TPL-40/50W XL-TPL-50/60W
Inside box size(L*W*H) 710*280*250mm 1010*280*250mm 1310*280*250mm 1610*280*250mm
Outside box size(L*W*H) 710*280*250mm 1010*280*250mm 1310*280*250mm 1610*280*250mm
Outside box gross weight 9/carton 11kg 15.1kg 19.6kg 32.7kg

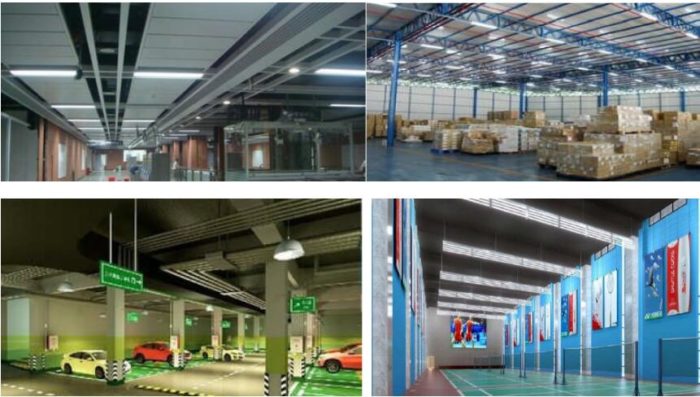

Applied area

This product is applied in big production workshop, warehouse,stadium, factory, port and other basements.
