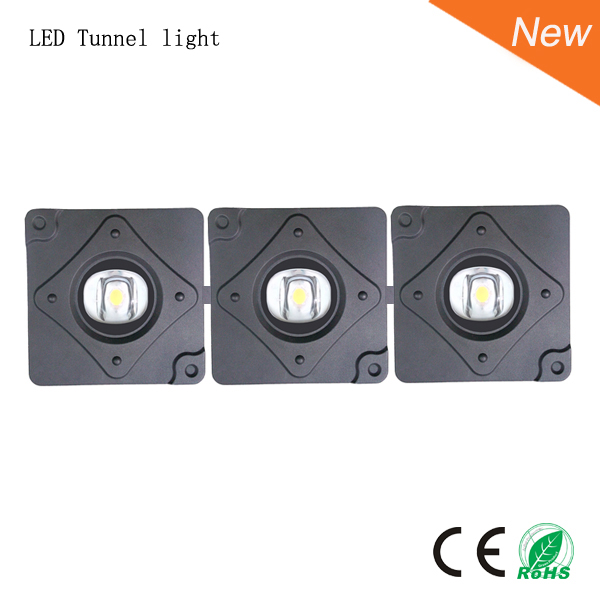

LED Tunnel light 200W

feiteng-200w

Speciality

speciality-Faeton001 1. Adopting Cree original LED, luminaire efficency>100lm/w, CRI>80Ra. Meanwell driver, Input voltage: 90-305VAC;
speciality-Faeton002 2. Graceful Stream-line design, suitable for high pole installation, which is not affected by wind. ADC12 Aluminum alloy die casting shell, good mechanical strength and heat dissipation.
speciality-Faeton003 3. Compact water-proof structure design, protection grade up to IP65
speciality-Faeton004 4. Use of lens for light distribution processing, different beam angle 140×75°, more effective use the light.
speciality-Faeton005 5. Finished product can vary the light Angle, using stents adjustment point, Angle adjustable plus or minus 60° ,25 ° plus or minus
speciality-Faeton006 6. Adopting special thermal conductive materials from South Korea, which can fast conduct the heat from the light source to the shell, temperature gap is less than 8 degree. There is a circular air convection channel inside of the lighting fixture, making it more effective heat dissipation.



Shape Structure

Shell Material:ADC12 Aluminum Alloy
Shell Color:Black
Net Weight:10.65Kg
Unit:mm ±1mm

FEITENG-240-004



Parameter

Input Voltage

AC90~305V

Color Rendering Index

Ra>80

FrequencyRange

50~60Hz

Beam Angle

140×75°

Power Factor

>0.95

LED Reduction Rate

1~3% / 1,000Hrs

Power Efficiency

>90%

Color Temperature

3000K,4000K,5000K

LED Working Voltage

DC37~42V

Working Temperature

-20℃~+45℃

LED Power

180W

IP Grade

IP65

Total Power

200W

Working Life-span

>50000H

Luminous Efficiency

100 lm / W

Power line

VDE 3×0.75mm2

Connect wire

Brown →L / Blue→ N/Yellow or Green →G



Diagram of degradation for Luminous

FEITENG-60-004

The data above has been got at a temperature of 25 Celsius degree and taking 1000 hours running by a nonstop way.

Degradation of luminous flux of LED lamps depends on environmental conditions. The higher the temperature, the longer the using time, the faster luminous flux drops.



Using and installing instructions

FEITENG-60-006

As Picture No.1 showed, fix the lamp to mounting surface with 3 screws.

As Picture No.2 showed, unscrew the retaining screw, take down the fitting.

As Picture No.3 showed, Connect Live Wire/Null Wire/Ground Wire to electric cable properly and switch on.

FEITENG-60-007
Attentions:

Only professional electrician can install the lamp, please check the lamp very carefully before installation.

Please install the lamp follow up the installation procedure, make sure the screw has been wrested very tightly, the wires have been connected properly, .Please operate according to Product Instructions enclosed.
