Round tri-proof light 40W 1200MM

Specialty:
1.The shell is made of PC materials optical pole by two-colour extrusion process, which has excellent weather resistance.
2.The plug is using innovative clamp-type installation method, without screws, convenient for the construction site operation.
3.The lamp plug is equipped with respirator,which make the lamp breathable,dry and fog-free, the heat dissipation temperature is 3-5 degree lower than that traditional plug.
4.Lamps are waterproof, dustproof, and anti-corrosive. Light fixture is with IP65,IK10/09.
5.The transparent parts of lampshade optimized based on the principle of illumination optics. The light is uniform, soft and non-glare.
6.Installation: hanging, Ceiling mounting and others various ways
7.Emergency function: Emergency power:5W keep on 3 hours.

Applied area

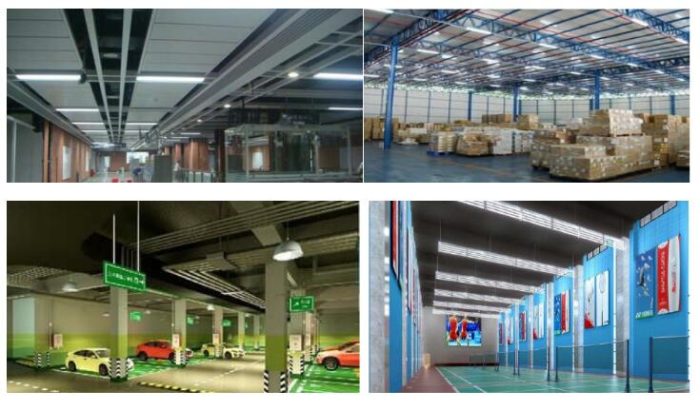

This product is applied in big production workshop, warehouse,stadium, factory, port and other basements.

Shape and Structure Sharacteristics

Shell Material:Aluminum Alloy

Shell Color: white

Net Weight:

Unit:mm  ±2mm



Parameters

Input Voltage AC200~240V Color Rendering Index Ra>80
Frequency Range 50~60Hz Beam Angle 145°
Power Factor >0.95 LED Reduction Rate 1~3% / 1,000Hrs
Power Efficiency >90% Color Temperature 2800~6500K
LED Working Voltage DC36-42V Working Temperature -20℃~+45℃
Total Power IP Grade IP65
Luminous Efficiency 120lm / W Working Life-span >50000H
Power line VDE  3×1.0mm2



Packing specification

model size weight model size weight
XL-TPO-20W ∅ 79*600mm 0.9kg XL-TPO-30W ∅ 79*900mm 1.15kg
XL-TPO-40W ∅ 79*1200mm 1.49kg XL-TPO-50W ∅ 79*1200mm 1.6kg
XL-TPO-60W ∅ 79*1500mm 1.83kg



Item XL-TPO-20W XL-TPO-30W XL-TPO-40/50W XL-TPO-60W
Outside box size(L*W*H) 670*290*340mm 970*290*340mm 1270*290*340mm 1570*290*340mm
Outside box gross weight 9/carton 9.1kg 11.8kg 15.4/17.2kg 19kg
